Product Name :

Product Code : SC

Product Group : Earthing / Clamps

Special features:

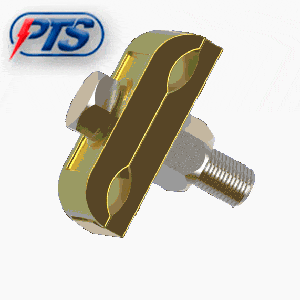

This clamps complies with BS-7430 AND BSEN1982 standards requirements. They are available in 2 sizes. This clamps are designed to attach different cross sections of cables to the steel structure. It also used to connect the end of cable to the armature. Since this clamp is casted in metal casts and in fast and very high freezing temperature, including small fine grains and it has a high mechanical reinforcement.

 Same as other PTS products this clamps is made of (Stainless Steel 304 bolt that compared with galvanized, have improved chemical and electrochemical corrosion resistance. This clamps can be used in concrete too.

Technical specification:

These clamps are special copper alloy body with high mechanical strength which gives strong resistance to corrosion

Vickers hardness: 105 HV

Electrical resistance: 10 -4 *1.4

Joint by Stainless Steel 304 bolts

 Tightening torque: NM15
