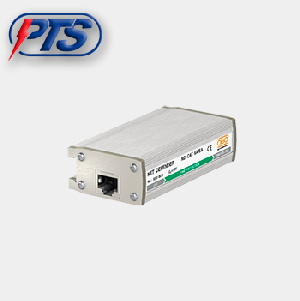

Product Name : ND-CAT6A/EA


Product Code : 5081800


Product Group : OBO Products / Surge Arrestor (class C+D)





parameter unit amount
Maximum continuous voltage AC UC 41
Maximum continuous voltage DC UC 58
Category   Type 2+3 / C2+C1
Lightning protection zone LPZ   1→3
Channel performance ISO/IEC   Class EA
Channel performance Ansi/EA   CAT 6A
Number of poles   8
Rated current IL 1
Impulse durability wire-wire   C1: 0,3 kV / 0,15 kA (8/20µs)
Impulse durability wire-earth   C2: 2 kV / 1 kA (8/20µs)
Total discharge current (8/20)   7
Protection level wire-wire   <120
Protection level wire-earth   <700
Frequency range   >500 MHz
Temperature range ϑ -40-80
Installation type   Connector/cable adapter
Connection system   RJ45 8(8)
Protection rating   IP20
Shielding connection available   Yes
Shield connection   Direct
Earthing via:   Connection cable
Testing standard   IEC 61643-21
