Product Name : Product Code : DSK Product Group : Earthing / Clamps |
||
![]() |
![]() |
![]() |

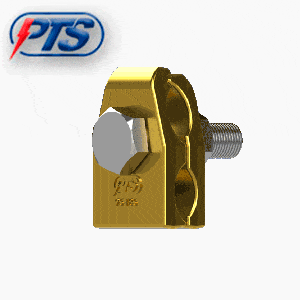

Special features: This clamps complies with BS-7430 and BS-1972 standards. This clamps attach firmly cable to the plate too. Cable to pole connection clamps consist of two separate parts; upper and a lower. In cases where the cable is placed directly on the pole or plate, it is possible to use only the upper parts (in this case the product code is SK). This clamps is produced by a forging process so its molecular structure is uniform and has a small and compacted grains. Compared to casting, it has a higher mechanical strength and electrical conductivity. Technical specification: These clamps are special copper alloy body with high mechanical strength which gives strong resistance to corrosion Vickers hardness: 105 HV Electrical resistance: 1.4 *10-4 Joint by Stainless Steel 304 bolt and nut Tightening torque: NM15 |
||
